9 inch x 42 inch Table, R-8 Taper, 8 Spindle Speeds, 2HP, 1Ph, 115/230V Brand Jet Caution Jet's Step Pulley milling machine is the perfect solution for maintenance shops, repair shops, job shops, schools and light production. Collet Capacity 1/8 7/8 Distance Spindle to Column (in.) 19 Distance Spindle to Column (min./in.) 4-1/2 Head Movement (deg.) 90° R & L, 45° F & B Height 72 inch Length 69 inch Max Distance Spindle to Table ( in.) 17-1/2 Model Number JTM-2 Motor 2HP, 115/230V, 1Ph, Prewired 230V Net Weight 2200 pound Note Use of static phase converter will void warranty Number of Spindle speeds 8 Overall Dimensions 57 x 64 x 82 Part Number 690089 Quill Diameter (in.) 3-3/8 Quill Down feed Rates (IPR) .0015 .003 .006 Range of Spindle Speeds (RPM) 80 2,720 Ship Weight 2056 pound Spindle Taper R-8 Spindle Travel (in.) 5 T-Slot Centers (in.) 2-1/2 T-Slots Number and Size (in.) 3 and 5/8 Table Cross Travel (in.) 12-1/2 Table Longitudinal Travel (in.) 23-7/8 Table Size (in.) 9 x 42 Travel of Knee (in.) 14-1/2 Travel of Ram (in.) 13-3/8 Width 59 inch Work Table Weight Capacity (lbs.) 550
Readmore
Technical Details
- 2HP, 1Ph, 115/230V motor (Prewired 230V)- 12.25" of ram travel
- Collet capacity is 1/8-7/8 inches
- 8 spindle speeds ranging from 80-2720 RPM
- Built with coolant system(coolant pump not included)
See more technical details

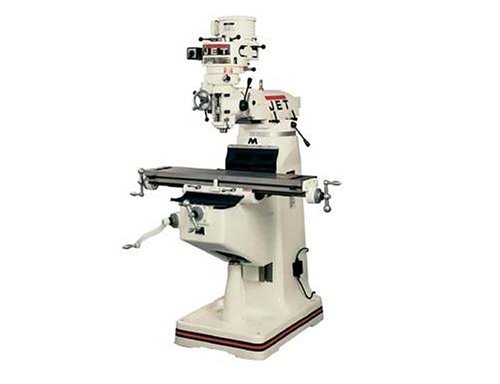

Images Product
Buy Jet 690089 JTM-2 115/230-Volt 1 Phase Vertical Milling Machine Now
