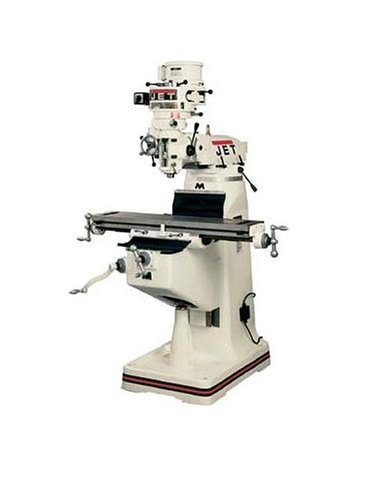

Jet 690161 JTM-1 230/460-Volt 3 Phase Vertical Milling Machine with Acu-Rite 200M Digital Read Out and Powerfeeds (X-Axis and Y-Axis)

Buy Cheap Jet 690161 JTM-1 230/460-Volt 3 Phase Vertical Milling Machine with Acu-Rite 200M Digital Read Out and Powerfeeds (X-Axis and Y-Axis)

Buy Low Price From Here Now
Brand Jet Collet Capacity 1/8 - 7/8 Distance Spindle to Column (in.) 19 Distance Spindle to Column (min./in.) 4-1/2 Head Movement (deg.) 90° R & L, 45° F & B Height 82 inch Length 64 inch Max Distance Spindle to Table ( in.) 17-1/2 Motor 2 HP, 230V, 3 Ph Net Weight 2200 pound Number of Spindle speeds 16 Overall Dimensions 57 X 64 X 82 Part Number 690161 Prewired 230V 230V Quill Diameter (in.) 3-3/8 Quill Down feed Rates (IPR) .0015 - .003 - .006 Range of Spindle Speeds (RPM) 80 - 5440 Spindle Taper R-8 T-Slot Centers (in.) 2-1/2 T-Slots Number and Size (in.) 3 and 5/8 Table Cross Travel (in.) 12-1/2 Table Longitudinal Travel (in.) 23-7/8 Table Size (in.) 9 X 42 Travel of Knee (in.) 14-1/2 Travel of Ram (in.) 13-3/8 Width 57 inch Work Table Weight Capacity (lbs.) 550
Readmore

Technical Details

- Acu-Rite 200M DRO and X and Y-axis powerfeeds installed
- 2HP, 3Ph, 2-speed, 230V motor
- 12.25" of ram travel
- Collet capacity is 1/8-7/8 inches
- 16 spindle speeds ranging from 80-5440 RPM
See more technical details

Images Product

Buy Jet 690161 JTM-1 230/460-Volt 3 Phase Vertical Milling Machine with Acu-Rite 200M Digital Read Out and Powerfeeds (X-Axis and Y-Axis) Now
